About The Met-Chem Lamella Clarifier

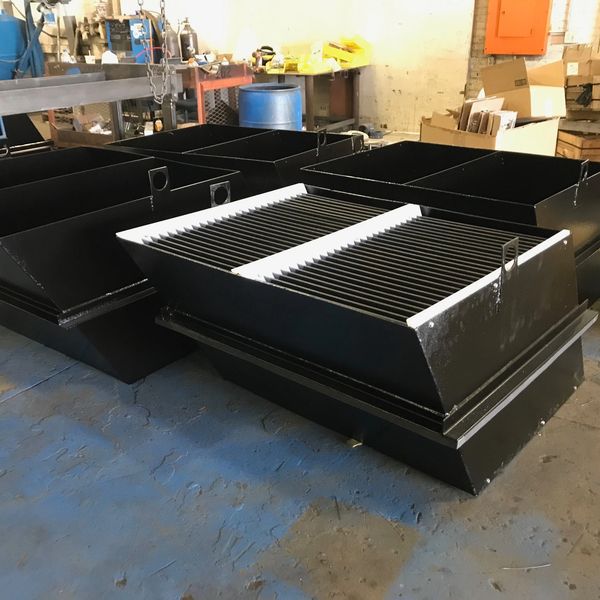

The Met-Chem lamella clarifier uses the time proven concept of inclined plate clarification. This type of clarifier uses gravity in conjunction with the projected settling area of the 60-degree angle plastic parallel plates to settle solids from the pre-treated liquid flow. This treated liquid flows first to the flocculation tank where a polymer is added to promote floc growth, then down to the bottom of the clarifier and up through the plate pack(s) while the solids settle out to the bottom sludge cone or cones – depending upon the size. The solids are intermittently taken from the bottom cone tank for a further settling of the solids and then, finally to a filter press for final dewatering.
retention time The secret to a met-chem lamella clarifier
Enhanced Performance of Met-Chem Lamella Clarifier: An Explanation of Settling Time Efficiency
In the realm of clarifiers, the settling time plays a pivotal role in determining the efficiency and clarity of the output flow. The Met-Chem Lamella Clarifier, which offers 50 minutes of settling time for its solids, demonstrates superior performance compared to competitors' lamella clarifiers with only 25 minutes of settling time. This extended settling period is a key factor in providing a cleaner output and more efficient solids capture. Here's a detailed explanation of how and why this occurs.
Settling Time and Clarification Efficiency
Settling time refers to the duration that suspended solids are allowed to settle out of the liquid before the clarified water is discharged. The efficiency of this process is influenced by several factors, including particle size, density, and the hydraulic conditions within the clarifier.
- Particle Settling Velocity:
- Stokes' Law: According to Stokes' Law, the settling velocity of a particle in a fluid is proportional to the square of its radius and the difference in density between the particle and the fluid, divided by the fluid's viscosity. Longer settling times allow smaller and lighter particles to settle more effectively, which would otherwise remain suspended in shorter settling periods.
- 50 Minutes vs. 25 Minutes: With 50 minutes of settling time, the Met-Chem Lamella Clarifier provides ample opportunity for even the finest particles to settle. In contrast, a 25-minute settling time may not be sufficient for these smaller particles to fully settle, leading to higher turbidity in the output.
- Hydraulic Retention Time (HRT):
- Definition: Hydraulic Retention Time is the average time that a liquid remains in the clarifier. Longer HRT means more time for solids to separate from the liquid.
- Impact: A longer HRT in the Met-Chem Lamella Clarifier ensures that the solids have enough time to travel through the inclined plates and settle out of the suspension. This results in a cleaner effluent as compared to systems with shorter HRT.
- Reduction of Turbulence:
- Flow Dynamics: Extended settling times reduce the overall flow rate through the clarifier, minimizing turbulence that can resuspend settled particles.
- Met-Chem Advantage: The Met-Chem Lamella Clarifier's 50-minute settling time allows for a gentler flow through the system, enhancing the efficiency of solids separation by maintaining a calm environment within the settling zone.
Comparative Advantages of Met-Chem Lamella Clarifier
- Cleaner Output Flow:
- Higher Clarity: With a longer settling time, the Met-Chem clarifier produces a higher clarity effluent. More suspended solids are removed, resulting in a lower concentration of total suspended solids (TSS) in the output.
- Quality Assurance: This is particularly important for industries where effluent quality is critical, such as in food and beverage processing, pharmaceuticals, and other high-purity applications.
- More Efficient Solids Capture:
- Enhanced Sludge Concentration: The additional settling time allows more solids to settle out, resulting in a denser sludge at the bottom of the clarifier. This denser sludge is easier to handle and dewater.
- Operational Efficiency: The increased efficiency in solids capture reduces the frequency and volume of sludge handling operations, leading to cost savings and reduced operational interruptions.
- Operational Stability:
- Consistent Performance: The extended settling time in the Met-Chem Lamella Clarifier provides a buffer against fluctuations in influent quality and flow rates. This ensures consistent performance and reliable operation, even under variable conditions.
- Maintenance and Longevity: Reduced turbulence and more efficient solids removal contribute to lower wear and tear on the clarifier components, extending the lifespan of the equipment and reducing maintenance requirements.
Lamella Clarifier
Why Choose The Lamella Clarifier
Ultimate Guide to Lamella Clarifiers: How They Work and Why They're Essential
What is a Lamella Clarifier?
A lamella clarifier, also referred to as a lamella plate clarifier or inclined plate settler, is a specialized type of sedimentation tank that utilizes a series of inclined plates to effectively separate solid particles from liquid. This innovative design maximizes the settling surface area, significantly enhancing the efficiency of the sedimentation process. Lamella clarifiers are extensively used across various industries for water and wastewater treatment, thanks to their compact size and high performance.
How Does a Lamella Clarifier Work?
Lamella clarifiers operate based on the principle of gravity settling. Here’s a step-by-step breakdown of the process:
Influent Introduction: Water containing suspended solids enters the lamella clarifier through an inlet.
Flow Distribution: The influent is evenly distributed across the entire width of the clarifier to ensure uniform flow.
Plate Settling: As the water flows upward between the inclined plates of the lamella clarifier, solid particles settle onto the plates due to gravity.
Sludge Collection: Settled solids slide down the inclined plates to the bottom of the clarifier, where they are collected as sludge.
Effluent Discharge: The clarified water, free of most suspended solids, exits through an outlet at the top of the lamella clarifier.
Advantages of Lamella Clarifiers
Parkson lamella clarifier
Space Efficiency: Lamella clarifiers require significantly less space compared to traditional sedimentation tanks. Their vertical design maximizes the settling area within a smaller footprint.
High Efficiency: The inclined plate design of the lamella clarifier increases the effective settling area, improving the removal of suspended solids.
Low Maintenance: With fewer moving parts and a straightforward design, lamella clarifiers are easy to maintain and operate.
Cost-Effective: Due to their compact size and efficient performance, lamella clarifiers often have lower operational and capital costs compared to other sedimentation systems.
Applications of Lamella Clarifiers
Lamella clarifiers are versatile and can be utilized in various applications, including:
Municipal Water Treatment: For removing particulates from raw water sources.
Industrial Wastewater Treatment: In sectors such as mining, petrochemical, and food processing to treat effluent.
Stormwater Treatment: For reducing sediment load in stormwater runoff before discharge.
Drinking Water Treatment: Ensuring safe and clean drinking water by removing suspended solids.
How to Choose the Right Lamella Clarifier
Selecting the appropriate lamella clarifier for your application involves considering several factors:
Flow Rate: The volume of water to be treated determines the size and number of lamella clarifiers required.
Type of Solids: Understanding the nature and concentration of suspended solids aids in designing an effective system.
Space Constraints: Assessing the available space ensures the chosen lamella clarifier fits within the physical constraints of the site.
Maintenance Needs: Considering the ease of access for cleaning and maintenance can impact long-term operational efficiency.
Installation and Maintenance Tips
Proper Sizing: Ensure the lamella clarifier is appropriately sized for the flow rate and solids loading to avoid overloading and inefficiency.
Regular Cleaning: Periodically clean the plates and sludge collection areas to maintain optimal performance.
Monitor Performance: Regularly check the effluent quality and adjust the system as needed to maintain desired results.
Routine Inspections: Conduct inspections to identify and address any wear and tear on the plates or other components.
Conclusion
A lamella clarifier is a highly efficient and space-saving solution for water and wastewater treatment. Its ability to effectively separate solids from liquids makes it an essential component in various industrial and municipal applications. By understanding how they work, their advantages, and how to maintain them, you can ensure optimal performance and longevity of your lamella clarifier system.
For more information on lamella clarifiers or to discuss your specific needs, contact us today. Our experts are ready to help you find the perfect solution for your water treatment challenges.
